723,188

METHOD OF SIGNALING - June 14, 1901


UNITED STATES PATENT OFFICE


NIKOLA TESLA, OF NEW YORK, N. Y.

Nikola Tesla Patent 723,188 METHOD OF SIGNALING


SPECIFICATION forming part of Letters Patent No. 723,188, dated March 17, 1903
Original application filed July 16, 1900, Serial No. 23,847. Divided and this application filed June 14, 1901. Serial No. 64,522. (No model.)


To all whom it may concern:

Be it known that I, NIKOLA TESLA, a citizen of the United States, residing in the borough of Manhattan, in the city, county, and State of New York, have invented certain new and useful Improvements in Methods of Signaling, of which the following is a specification, reference being had to the drawings accompanying and forming a part of the same.

In certain systems for transmitting intelligible messages or governing the movements and operations of distant automata electrical impulses or disturbances produced by suitable apparatus are conveyed through the natural media to a receiving-circuit capable of responding to the impulses, and thereby effecting the control of other appliances. Generally a special device, highly sensitive, is connected to the receiving-circuit, which in order to render it still more susceptible and to reduce the liability of its being affected by extraneous disturbances is carefully adjusted so as to be in tune with the transmitter. By a scientific design of the sending and receiving circuits and other apparatus and skillful adjustment of the same these objects may be in a measure attained; but in long experience I have found that notwithstanding all constructive advantages and experimental resources this method is in many cases inadequate. Thus while I have succeeded in so operating selectively under certain favorable conditions more than one hundred receivers in most cases it is practicable to work successfully but a few, the number rapidly diminishing as, either owing to great distance or other causes, the energy available in the tuned circuits becomes smaller and the receivers necessarily more delicate. Evidently a circuit however well constructed and adjusted to respond exclusively to vibrations of one period is apt to be affected by higher harmonics and still more so by lower ones. When the oscillations are of a very high frequency, the number of the effective harmonics may be large and the receiver consequently easily disturbed by extraneous influences to such an extent that when very short waves, such as those produced by Hertzian spark apparatus, are used little advantage in this respect is to be derived from tuning the circuits. It being an imperative requirement in most practical applications of such systems of signaling or intelligence transmission that the signals or messages should be exclusive or private, it is highly desirable to do away with the above limitations, especially in view of the fact which I have observed that the influence of powerful electrical disturbances upon sensitive receivers extends even on land to distances of many hundreds of miles, and consequently, in accordance with theory, still farther on sea. To overcome these drawbacks and to enable a great number of transmitting and receiving stations to be operated selectively and exclusively and without any danger of the signals or messages being disturbed, intercepted, or interfered with in any way is the object of my present invention.

Broadly stated, this invention consists in generating two or more kinds or classes of disturbances or impulses of distinctive character with respect to their effect upon a receiving-circuit and operating thereby a distant receiver which comprises two or more circuits, each of which is tuned to respond exclusively to the disturbances or impulses of one kind or class and so arranged that the operation of the receiver is dependent upon their conjoint or resultant action.

By employing only two kinds of disturbances or series of impulses instead of one, as has heretofore been done, to operate a receiver of this kind I have found that safety against the disturbing influences of other sources is increased to such an extent that I believe this number to be amply sufficient in most cases for rendering the exchange of signals or messages reliable and exclusive; but in exceptional instances a greater number may be used and a degree of safety against mutual extraneous interference attained, such as is comparable to that afforded by a combination-lock. The liability of a receiver being affected by disturbances emanating from other sources, as well as that of the signals or messages being received by instruments for which they are not intended, may, however, be reduced not only by an increased number of the cooperative disturbances or series of impulses, but also by judicious choice of the same and order in which they are made to act upon the receiver.

Evidently there are a great many ways of generating impulses or disturbances of any wave length, wave form, number or order of succession, or of any special character, such as will be capable of fulfilling the requirements above stated, and there are also many ways in which such impulses or disturbances may be made to cooperate and to cause the receiver to be actuated, and inasmuch as the skill and practical knowledge in these novel fields can only be acquired by long experience the degree of safety and perfection attained will necessarily depend upon the ability and resource of the expert who applies my invention; but in order to enable the same to be successfully practiced by any person possessed only of the more general knowledge and experience in these branches I shall describe the simplest plan of carrying it out which is at present known to me.

For a better understanding of the subject reference is now made to the accompanying drawings, in which—

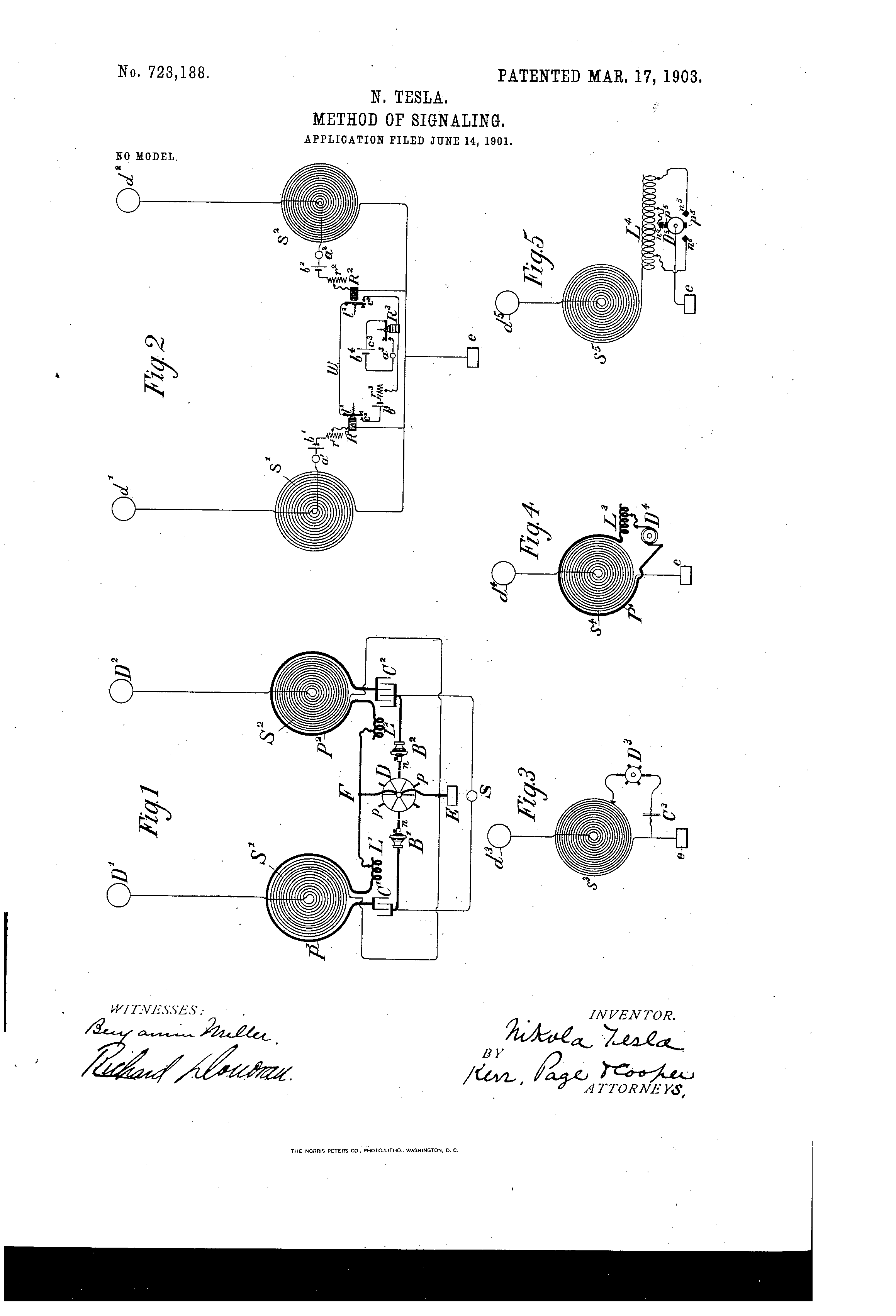

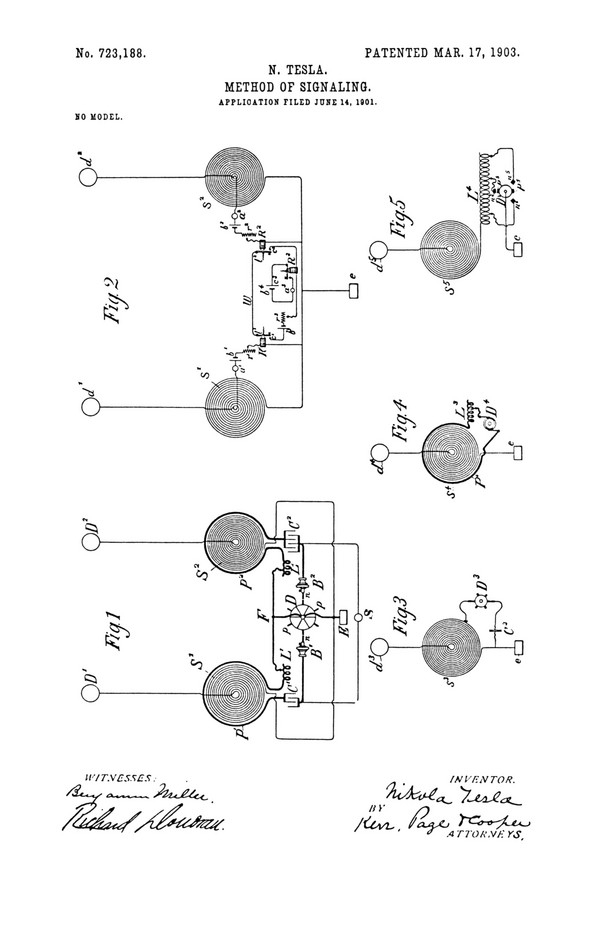

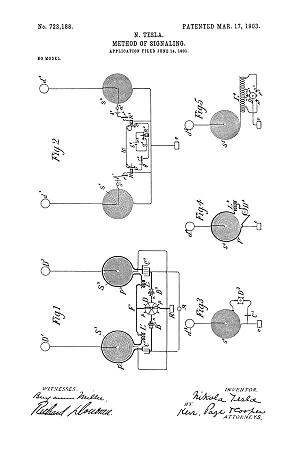

Figures 1 and 2 represent diagrammatically an apparatus and circuit connections employed at the sending and receiving stations, respectively, for the practice of my invention; and Figs. 3, 4, and 5, modified means which may be employed in the practical application of the invention.

In Fig. 1, S1 and S2 are two spirally-wound coils or conductors connected with their inner ends to preferably elevated terminals D1 and D2, respectively, and with their outer ends to an earth-plate E. These two coils, conductors, or systems D1 S1 E and D2 S2 E have different and suitably-chosen periods of vibration, and, as pointed out in other patents relating to my system of energy and intelligence transmission, their lengths should be such that the points of maximum pressure developed therein coincide with the elevated terminals D1 D2. By suitable-chosen periods of vibration such periods are meant as will secure the greatest safety against interference, both mutual and extraneous. The two systems may have electrical oscillations impressed upon them in any desired manner conveniently by energizing them through primaries P1 and P2, placed in proximity to them. Adjustable inductances L1 and L2 are preferably included in the primary circuits chiefly for the purpose of regulating the rates of the primary oscillations. In the drawings these primaries P1 and P2 surround the coils S1 S2 and are joined in series through the inductances L1 L2, conductor F, condensers C1 and C2, brush-holders B1 and B2, and a toothed disk D, which is connected to the conductor F and, if desired, also to the ground-plate E, as shown, two independent primary circuits being thus formed. The condensers C1 and C2 are of such capacity and the inductances L1 and L2 are so adjusted that each primary is in close resonance with its secondary system, as I have explained in other patents granted to me. The brush holders B1 and B2 are capable independently of angular and, if necessary, also of lateral adjustment, so that any desired order of succession or any difference of time interval between the discharges occurring in the two primary circuits may be obtained. The condensers being energized from a suitable source S, preferably of high potential, and the disk D being rotated, its projections or teeth p p coming at periodically-recurring intervals in very close proximity to or, as the case may be, in contact with conducting rods or brushes n n cause the condensers to be discharged in rapid succession through their respective circuits. In this manner the two secondary systems D1 S2 E and D2 S2 E are set in vibration and oscillate freely each at its proper rate for a certain period of time at every discharge. The two vibrations are impressed upon the ground through the plate E and spread to a distance reaching the receiving-station, which has two similar circuits or systems e s1 d1 and e s2 d2, arranged and connected in the same manner and tuned to the systems at the sending-station, so that each responds exclusively to one of the two vibrations produced by the transmitting apparatus. The same rules of adjustment are observed with respect to the receiving-circuits, care being furthermore taken that the tuning is effected when all the apparatus is connected to the circuits and placed in position, as any change may more or less modify the vibration. Each of the receiving-coils s1 and s2 is shunted by a local circuit containing, respectively, sensitive devices a1 a2, batteries b1 b2, adjustable resistances r1 r2, and sensitive relays R1 R2, all joined in series, as shown. The precise connections and arrangements of the various receiving instruments are largely immaterial and may be varied in many ways. The sensitive devices a1 a2 may be any of the well-known devices of this kind—as, for example, two conducting-terminals separated by a minute air-gap or a thin film of dielectric which is strained or weakened by a battery or other means to the point of breaking down and gives way to the slightest disturbing influence. Its return to the normal sensitive state may be secured by momentarily interrupting the battery-circuits after each operation or otherwise. The relays R1 R2 have armatures l1 l2, which are connected by a wire w and when attracted establish electrical contacts c1 and c2, thus closing a circuit containing a battery b3 and adjustable resistance r3 and a relay R3. From the above description it will be readily seen that the relay R3 will be operated only when both contacts c1 and c2 are closed.

The apparatus at the sending-station may be controlled in any suitable manner—as, for instance, by momentarily closing the circuit of the source S, two different electric vibrations being emitted simultaneously or in rapid succession, as may be desired, at each closure of the circuit. The two receiving-circuits at the distant station, each tuned to respond to the vibrations produced by one of the elements of the transmitter, affect the sensitive devices a1 and a2 and cause the relays R1 and R2 to be operated and contacts c1 and c2 to be closed, thus actuating the receiver or relay R3, which in turn establishes a contact c3 and brings into action a device a3 by means of a battery d4, included in a local circuit, as shown. But evidently if through any extraneous disturbance only one of the circuits at the receiving-station is affected the relay R3 will fail to respond. In this way a communication may be carried on with greatly-increased safety against interference and privacy of the messages may be secured. The receiving-station shown in Fig. 2 is supposed to be one requiring no return message; but if the use of the system is such that this is necessary then the two stations will be similarly equipped, and any well-known means, which it is not thought necessary to illustrate here, may be resorted to for enabling the apparatus at each station to be used in turn as transmitter and receiver. In like manner the operation of a receiver, as R3, may be made dependent instead of upon two upon more than two such transmitting systems or circuits, and thus any desired degree of exclusiveness or privacy and safety against extraneous disturbances may be attained. The apparatus as illustrated in Figs. 1 and 2 permits, however, special results to be secured by the adjustment of the order of succession of the discharges of the primary circuits P1 and P2 or of the time interval between such discharges. To illustrated: The action of the relays R1 R2 may be regulated either by adjusting the weights of the levers l1 l2, or the strength of the batteries b1 b2, or the resistances r1 r2, or in other well-known ways, so that when a certain order of succession or time interval between the discharges of the primary circuits P1 and P1 exists at the sending-station the levers l1 and l2 will close the contacts c1 and c2 at the same instant, and thus operate the relay R3, but will fail to produce this result when the order of succession of or the time interval between the discharges in the primary circuits is another one. By these or similar means additional safety against disturbances from other sources may be attained and, on the other hand, the possibility afforded of effecting the operation of signaling by varying the order of succession of the discharges of the two circuits. Instead of closing and opening the circuit of the source S1, as before indicated, for the purpose of sending distinct signals it may be convenient to merely alter the period of either of the transmitting-circuits arbitrarily, as by varying the inductance of the primaries.

Obviously there is no necessity for using transmitters with two or more distinct elements or circuits, as S1 and S2, since a succession of waves or impulses of different characteristics may be produced by an instrument having but one such circuit. A few of the many ways which will readily suggest themselves to the expert who applies my invention are illustrated in Figs. 3, 4, and 5. In Fig. 3 a transmitting system e s3 d3 is partly shunted by a rotating wheel or disk D3, which may be similar to that illustrated in Fig. 1 and which cuts out periodically a portion of the coil or conductor s3 or, if desired, bridges it by an adjustable condenser C3, thus altering the vibration of the system e s3 d3 at suitable intervals and causing two distinct kinds or classes of impulses to be emitted in rapid succession by the sender. In Fig. 4 a similar result is produced in the system e s4 d4 by periodically short-circuiting, through an induction-coil L3 and a rotating disk D4 with insulating and conducting segments, a circuit p4 in inductive relation to said system. Again, in Fig. 5 three distinct vibrations are caused to be emitted by a system e s5 d5, this result being produced by inserting periodically a number of turns of an induction-coil L4 in series with the oscillating system by means of a rotating disk B5 with two projections p5 p5 and three rods or brushes n5, placed at an angle of one hundred and twenty degrees relatively to each other. The three transmitting systems or circuits thus produced may be energized in the same manner as those of Fig. 1 or in any other convenient way. Corresponding to each of these cases the receiving-station may be provided with two or three circuits in an analogous manner to that illustrated in Fig. 2, it being understood, of course, that the different vibrations or disturbances emitted by the sender follow in such rapid succession upon each other that they are practically simultaneous so far as the operation of such relays as R1 and R2 is concerned. Evidently, however, it is not necessary to employ two or more receiving-circuits, but a single circuit may be used also at the receiving-station constructed and arranged like the transmitting-circuits or systems illustrated in Figs. 3, 4, and 5, in which case the corresponding disks, as D3 D4 D5, at the sending will be driven in synchronism with those at the receiving stations as far as may be necessary to secure the desired result; but whatever the nature of the specific devices employed it will be seen that the fundamental idea in my invention is the operation of a receiver by the conjoint or resultant effect of two or more circuits each tuned to respond exclusively to waves, impulses, or vibrations of a certain kind or class produced either simultaneously or successively by a suitable transmitter.

It will be seen from a consideration of the nature of the method hereinbefore described that the invention is applicable not only in the special manner described, in which the transmission of the impulses is effected through natural media, but for the transmission of energy for any purpose and whatever the medium through which the impulses are conveyed.

What I claim is—

1. The method of operating distant receivers which consists in producing and transmitting a plurality of kinds or classes of electrical impulses or disturbances, actuating by the impulses or disturbances of each kind or class one of a plurality of circuits tuned to respond to impulses of such kind or class and operating or controlling the operation of a receiver by the conjoint action of two or more of said circuits, as set forth.

2. The method of signaling, which consists in producing and transmitting a plurality of kinds or classes of electrical impulses or disturbances, developing by the impulses of each class a current in one of a plurality of receiving-circuits tuned to respond exclusively thereto and controlling by means of the conjoint action of such circuits a local-circuit, as set forth.

3. The method of signaling which consists in producing a plurality of series of impulses or disturbances differing from each other in character and order of succession, exciting by the impulses of each series one of a plurality of receiving-circuits tuned to respond exclusively thereto and controlling by the conjoint action of such circuits a local-circuit, as set forth.

4. The method of signaling which consists in producing a plurality of series of electrical impulses of different character, varying the time interval between the emission of such impulses, exciting by the impulses of each series one of a plurality of receiving-circuits tuned to respond exclusively thereto and controlling by the conjoint action of such circuits a local circuit, as set forth.

5. The method of transmitting electrical energy for conveying intelligible signals which consists in producing a plurality of electrical impulses of different character, developing by the impulses of each kind a current in one of a plurality of receiving-circuits tuned to respond exclusively thereto, controlling the action or effect of the transmitted impulses upon the receiving-circuits by varying the character of said impulses, and operating or controlling the operation of a receiver by the conjoint action of two or more of said receiving-circuits, as set forth.

6. The method of transmitting electrical energy which consists in producing a plurality of electrical waves or impulses of different periodicities, varying the order of transmission of the waves or impulses forming elements of the signal sent, according as one or another receiving-station is to be communicated with where (proper circuit-closing mechanism being provided at each receiving-station) the transmitted signal will be intelligible at and only at the intended receiving-station.

7. The method of transmitting intelligence, which consists in selecting and associating together in predetermined order of succession two or more electrically-generated impulses of different periodicity, forming elements of signals to be sent, and transmitting such selected impulses with reference to the conjoint action of both or all in the production of a signal at a distant point, substantially as set forth.

8. In a system of telegraphy, wherein signals or messages are sent by the use of a plurality of electrical impulses of different periodicities and in a predetermined order of succession, the method of ascertaining at any particular station the particular signal sent to that station, which consists in the selection, to form a signal, of certain transmitted impulses of different periodicities and of a predetermined order of succession to the exclusion of all others, as set forth.

9. The improvement in the art of transmitting electrical energy which consists in operating or controlling a receiving mechanism by a series or group of electrical impulses of different periodicities and of a predetermined order of succession.

10. In a system for the transmission of electrical energy, for sending signals or messages to any one of two or more receiving-stations, the method of transmitting the message with reference to the intelligible receipt thereof at the desired station, which consists in the transmission of electrical waves or impulses of different periodicities in varying order of transmittal by a separate order or grouping of transmittal for each receiving-station.

NIKOLA TESLA
